FlowLines Pro
The free tier draws unlimited straight and elbow arrows with labels, so it covers a complete flow diagram. Pro is for curved arrows, arrows that keep up on their own, and drawing flows straight from your prototype.
Free vs Pro
- Name
Free, forever- Type
- no account needed
- Description
Unlimited straight and elbow arrows; automatic or pinned sides; color, width, solid or dashed; triangle, chevron or circle arrowheads at either end; labels on a pill; Reroute all, Restyle selected and Delete arrows for selection.
- Name
Pro- Type
- $19 one-time
- Description
Curved arrows; live reroute while the plugin is open; elbow arrows that route around other frames; arrows drawn from prototype links; saved style presets.
Pro is a one-time purchase, not a subscription. You pay once and keep it.
How the gate works
The Curved line style, Route elbows around other frames, Reroute arrows when layers move, Draw arrows from prototype links and Style presets carry a Pro pill. Choosing one without a license opens the Get Pro tab and the control goes back to its free setting. The plugin's main thread checks again before it draws a curved or frame-avoiding arrow, starts live reroute, reads prototype links, or saves or deletes a preset.
Arrows you already drew stay as they are if a license is removed. Reroute all keeps redrawing them in their stored style, curved ones included.

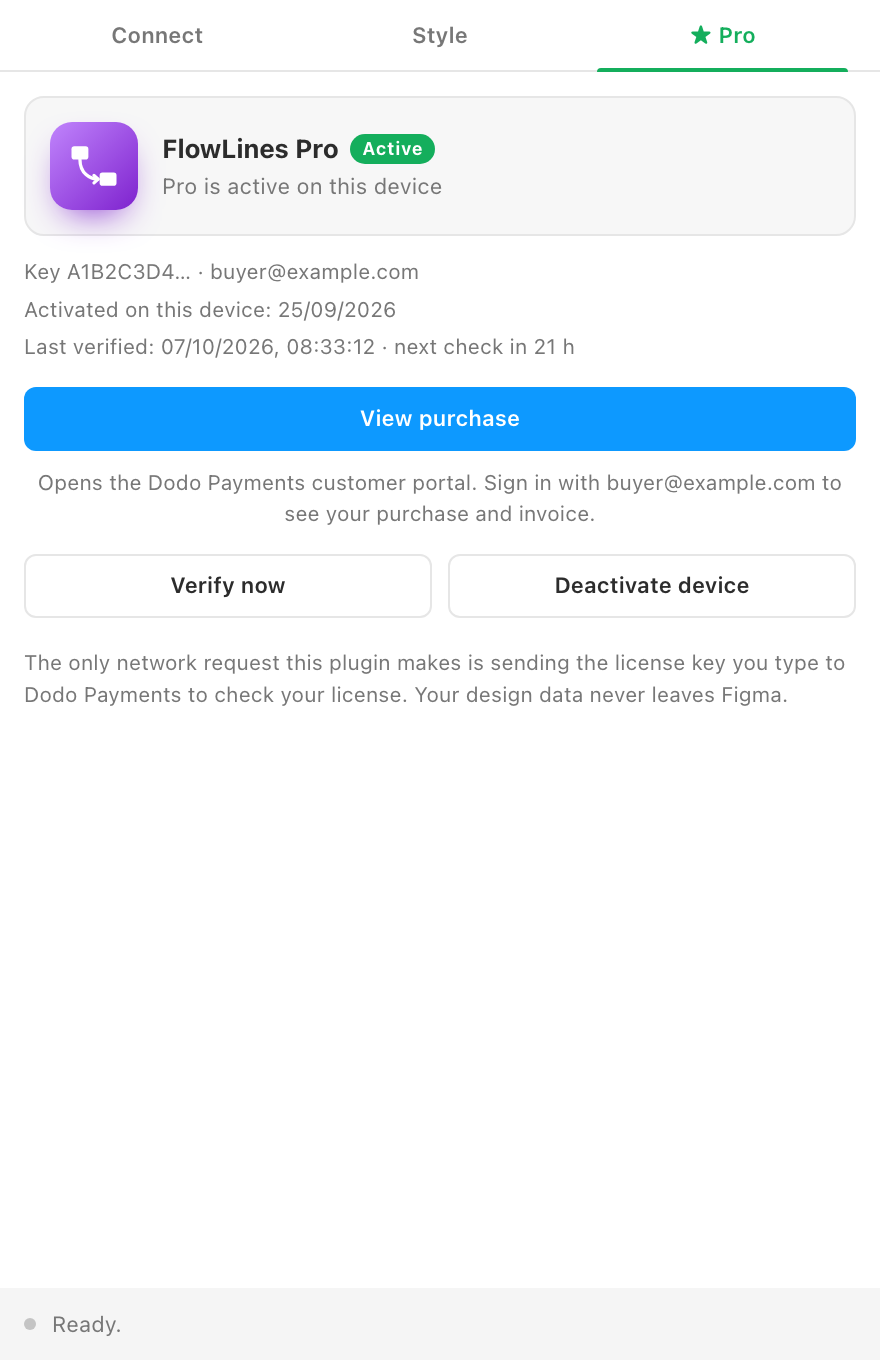

Activating

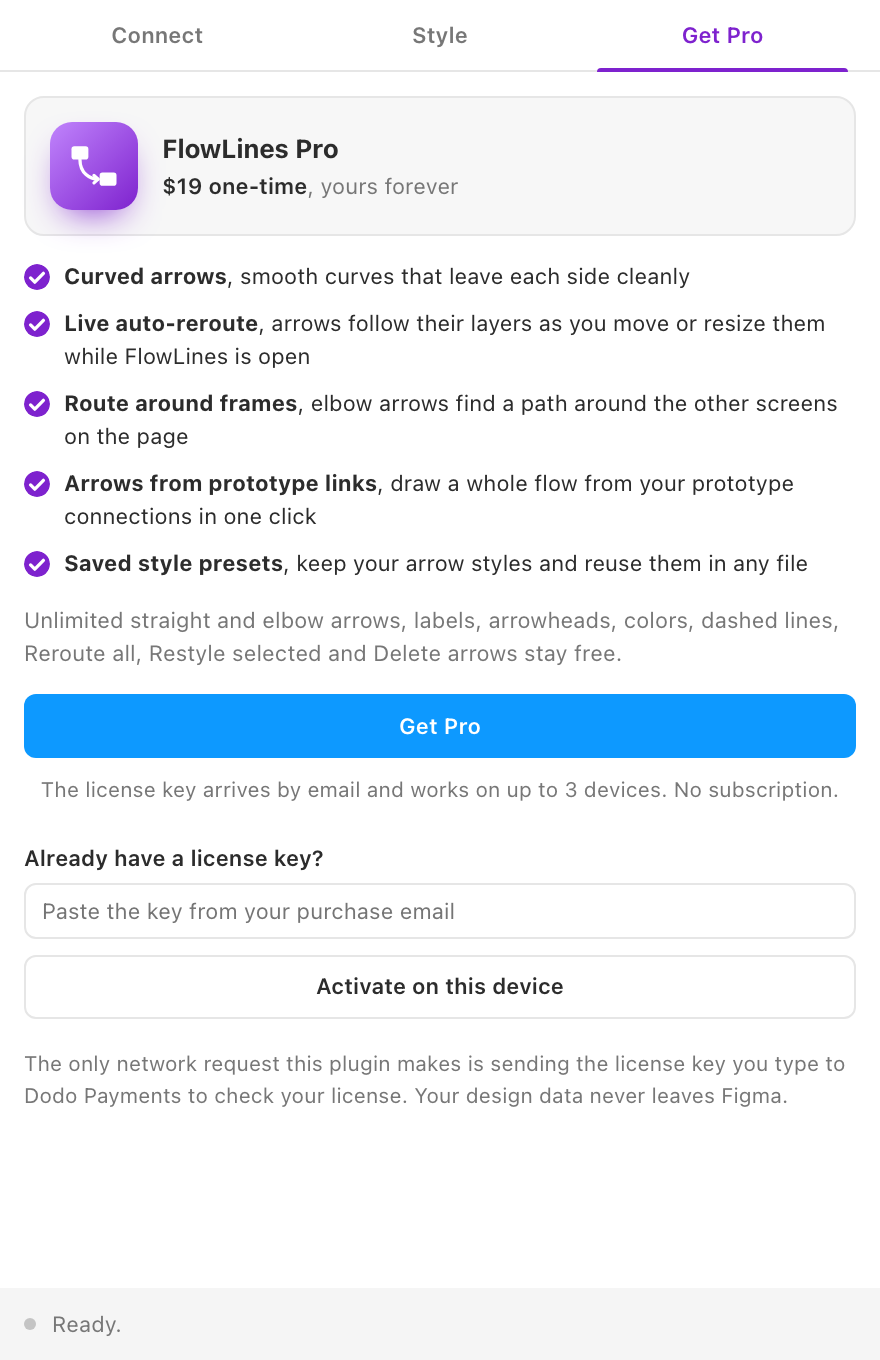

Buy from the Get Pro tab, paste the key from the email, click Activate on this device. Keys work on up to 3 devices. View purchase opens the Dodo Payments customer portal, where you can see your purchase and invoice. Devices and refunds are covered on the shared Pro and licensing page.
